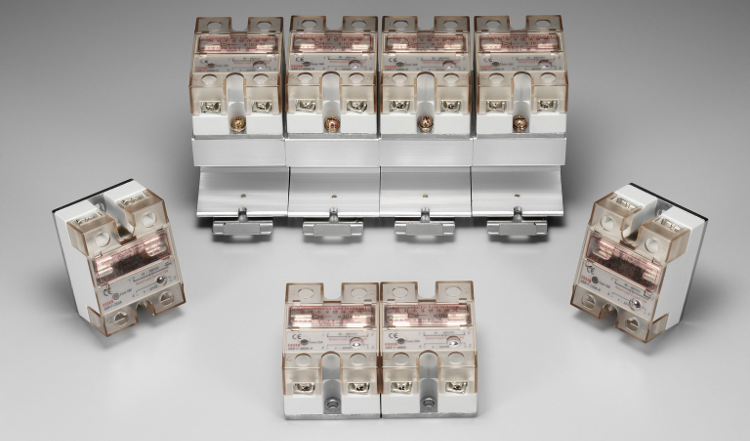

SSR-F-LA系列帶保險絲型單相固態繼電器型號列表:SCR-F-10LA/SCR-F-10LA-H/SCR-F-25LA/SCR-F-25LA-H/SCR-F-40LA/SCR-F-40LA-H
General data /共同規格
| Input voltage | 輸入電壓 | 4 ?32 VDC | 4 ?20 mA |
| Turn off voltage | 關閉電壓 | <3.5 VDC | Approx. 1.2KO |
| Trigger current | 觸發電流 | 12.0mA max. | |
| Control method | 控制方式 | Zero cross | Phase control |
| Leakage current | 洩漏電流 | 5 mA max. | 0.5% of full load max. |
| Response time | 反應時間 | 8.3 ms (60Hz) | 1.0ms max. |
| Input immunity | 輸入耐突波 | 2 KV (EN61000-4-4) | |
| Isolation strength | 電介強度 | 4 KVrms (EN60950/VDE0805) | |
| Insulation strength | 絕綠強度 | 100MG / 500VDC (EN60950/VDE0805) | |
| Housing material | 外殼材質 | 防火ABS (UL: 94V0) | |
| Circumstance | 工作環境 | -40°C ~ +80°C; 35 ?85%RH | |
■ Specification【Rated current corresponding to Resistive load】
| Type | 型式 | Standard type / 標準型 | High voltage type / 高壓型 | ||||||
| Model | 型號 | SCR-F-10LA | SCR-F-25LA | SCR-F-40LA | SCR-F-10LA-H | SCR-F-25LA-H | SCR-F-40LA-H | ||
| Rated current | 額定電流 | 6A | 16A | 25A | 6A | 16A | 25A | ||
| Fuse current | 保險絲電流 | 10A | 25A | 32A | 10A | 25A | 32A | ||
| Surge current | 耐突波電流 | 135A | 275A | 410A | 135A | 275A | 410A | ||
| Output voltage | 輸出電壓 | 90 ?380VAC | 180 ?480VAC | ||||||
| Peak voltage | 耐突波電壓 | 1200VAC min | |||||||
